Introduction

If you've ever watched your cargo shift during a hard brake—or spent twenty minutes trying to find a solid anchor point inside an enclosed trailer—you already know the problem: fixed tie-down points don't cut it. They're too few, too far apart, and never where you actually need them.



That's exactly the gap the E-Track system was built to fill.



From professional trucking fleets to weekend warriors hauling ATVs, E-Track has become the go-to cargo control solution for anyone who needs flexible, heavy-duty anchor points on demand. In this guide, we'll break down what E-Track is, why it matters, and how to install it in your trailer the right way.




What Is an E-Track System?



An E-Track system is a modular cargo securement rail made from heavy-duty galvanized steel. The rail features a repeating pattern of horizontal slots—shaped like the letter "E" when viewed from the side—that accept spring-loaded fittings. Once a fitting snaps into a slot, it creates a rated anchor point that can hold straps, D-rings, load bars, shoring beams, and dozens of other accessories.



The key advantage? Every slot is a potential tie-down point. Instead of relying on a handful of fixed D-rings welded to the floor, you get a continuous line of anchor positions running the length of your trailer wall or floor. That means you can position your straps exactly where your cargo needs them—not where the manufacturer happened to put a bolt.



E-Track was originally developed for the logistics and trucking industry as a universal securement standard. Today, most major trailer manufacturers offer it as a factory option, and aftermarket installation is straightforward for existing trailers.




Horizontal vs. Vertical E-Track: Which Do You Need?



E-Track rails come in two orientations, and the difference matters more than you might think.



Horizontal E-Track



The slots run parallel to the ground. This is the most common type, typically mounted on trailer walls at standard heights (commonly 12", 40", and 64" from the floor) or along the trailer floor itself. Horizontal E-Track is ideal for:



  • Securing cargo at multiple heights along the wall
  • Attaching straps, rope tie-offs, and cargo nets
  • Creating shelving or storage systems inside enclosed trailers
  • General-purpose tie-down for mixed loads



Vertical E-Track



The slots run perpendicular to the ground, mounted vertically on trailer walls or structural posts. Vertical E-Track is best for:



  • Securing tall or stacked loads
  • Adding shoring beams that span the trailer width
  • Creating partition walls to separate cargo zones
  • Complementing horizontal rails for full-coverage securement



For most enclosed trailer owners, horizontal E-Track mounted on the floor and lower walls is the starting point. Add vertical rails later if you haul tall loads or need deck systems.




The Benefits of an E-Track System



1. Unlimited Anchor Points



A standard 4-foot E-Track rail gives you multiple slot positions. Install two rails along your trailer floor, and suddenly you have dozens of anchor points instead of four or six fixed D-rings. That's the difference between "making it work" and securing your load properly.



2. Faster Loading and Unloading



With E-Track, you're not hunting for the nearest D-ring or looping straps around frame rails. Snap a fitting into the slot, attach your strap, and tighten. When you're unloading, release the fitting and move on. Professional movers and fleet operators consistently report significant time savings after switching to E-Track systems.



3. Superior Load Stability



E-Track allows you to create multi-angle securement. You can strap cargo from the sides, the floor, or overhead using shoring beams. This 360-degree approach dramatically reduces cargo shift during braking, cornering, and sudden stops—protecting both your load and your trailer.



4. Versatility Across Applications



The same E-Track rail that holds down a motorcycle today can secure furniture tomorrow, pallets next week, and an ATV next month. The accessories snap in and out, so your trailer adapts to whatever you're hauling.



Common applications include:



  • Enclosed cargo trailers – motorcycles, ATVs, UTVs, furniture, appliances
  • Moving trucks and vans – household goods, office equipment
  • Dry van semi-trailers – palletized freight, mixed loads
  • Toy haulers and RVs – recreational vehicles, outdoor gear
  • Work trucks – tools, materials, equipment



5. Heavy-Duty Strength You Can Trust



A properly installed E-Track system delivers working load limits (WLL) that far exceed typical D-ring setups. Individual E-Track fittings typically provide 1,000 to 2,500 lbs WLL, while the rails themselves are engineered to handle the forces generated by ratchet straps and load bars under tension. For context, Towmax's E Track Tie Down Rail Kit delivers a 6,000 lb break strength per rail—serious holding power for serious loads.




Essential E-Track Accessories



The real power of E-Track lies in its ecosystem of compatible accessories. Here are the most commonly used fittings and what they do:

Accessory Function
E-Track Ratchet Straps Primary tie-down for heavy loads; snap into track slots and ratchet tight
E-Track Cam Buckle Straps Lighter-duty securement; quick release for smaller loads
E-Track D-Ring Fittings Creates a removable anchor ring anywhere along the rail
E-Track Rope Tie-Offs Compact attachment points for ropes, bungees, and cargo nets
E-Track Shoring Beams Telescoping bars that span the trailer width to create decks or partitions
E-Track Wheel Chocks Locks into the floor rail to hold ATV/UTV/motorcycle tires in place
E-Track Cargo Nets Nets with E-fittings that secure loose or irregular loads
E-Track J-Hooks Hang tools, equipment, or gear from wall-mounted rails

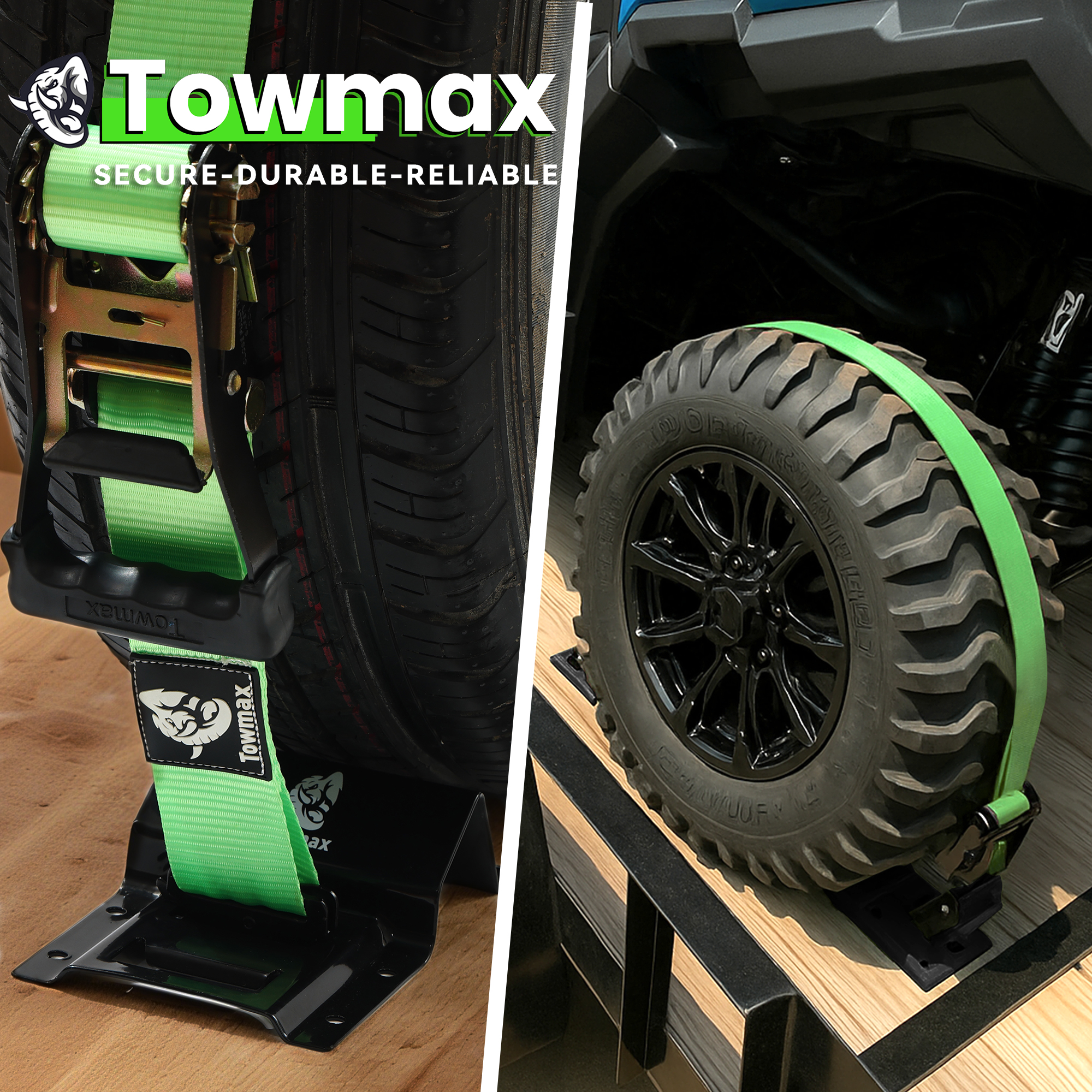

For UTV and ATV owners, Towmax offers a complete UTV Wheel Chock Tie Down Kit that pairs E-Track ratchet straps with wheel chocks—everything you need to secure your vehicle in one package.




How to Install E-Track in Your Trailer: Step-by-Step



Installing E-Track is a manageable DIY project for most trailer owners. The process varies slightly depending on whether you're mounting to wood or metal, but the principles are the same. Here's how to do it right.



What You'll Need



  • E-Track rails (4-ft or 8-ft sections)
  • Mounting hardware: Grade 5 or Grade 8 bolts (3/8" minimum), or #14 self-tapping screws for metal, lag bolts for wood
  • Power drill with appropriate bits
  • Measuring tape and marker
  • Level
  • E-Track backing plates (for thin-wall installations)
  • Safety glasses and gloves



Step 1: Plan Your Layout



Before drilling a single hole, think about what you haul most often and where you need anchor points.



For floor mounting: Run rails parallel to the trailer walls, about 12–18 inches from the edge. This gives you room to attach straps without them interfering with wall-mounted cargo.



For wall mounting: Industry standard heights are approximately 12", 40", and 64" from the floor. The lower rail handles most floor-level tie-downs; the mid and upper rails secure taller loads and support shelving or deck beams.



Mark your rail positions with a marker and use a level to ensure they're straight.



Step 2: Prepare the Surface



Clean the mounting surface thoroughly. Remove dirt, grease, and debris. If you're installing over a wooden floor, check for rot or soft spots—your E-Track is only as strong as what it's bolted to.



If your trailer has thin aluminum or composite walls with no structural backing, you'll need to reinforce the mounting area. Options include:



  • Plywood reinforcement: Attach 3/4" plywood over the wall area, fastening it to the studs, then mount the E-Track to the plywood.
  • Backing plates: Install oversized steel plates on the opposite side of the wall to distribute load across a wider area. Use one every 2–4 feet.



Step 3: Position and Mark the Rail



Place the E-Track rail against the mounting surface at your planned position. Mark through the rail's mounting holes onto the wall or floor. Make sure the rail is positioned to hit as many structural studs or crossmembers as possible—the more structural contact, the stronger the installation.



Step 4: Drill Pilot Holes



Using a drill bit slightly smaller than your fastener diameter, drill pilot holes at each marked position.



  • Wood: Pilot holes prevent splitting and ensure screws seat properly.
  • Metal: If using self-tapping screws, you may not need pilot holes. For through-bolts, drill holes that match the bolt diameter.



Step 5: Secure the Rail



Fasten the E-Track rail to the surface using your chosen hardware:



  • Through-bolts with backing plates: The strongest method, ideal for floor mounting. Bolt through the floor and secure with washers and nuts underneath.
  • Lag bolts into wood: For wooden floors and walls. Use washers to prevent the bolt head from pulling through the rail slots.
  • Self-tapping screws into metal: Quick and effective for metal trailer walls with structural backing.



Critical: Place a fastener every 8–12 inches along the rail. Do not skip holes—every fastener contributes to the system's overall holding power.



Step 6: Test the Installation



Before loading cargo, test each rail by snapping in an E-Track fitting and applying firm pressure. The fitting should seat securely with an audible click and resist moderate pulling force. If any section feels loose, add additional fasteners or backing reinforcement.



Step 7: Add End Caps (Optional)



If your rails don't run wall-to-wall, install rubber or plastic end caps on the exposed ends. They protect your cargo (and your shins) from sharp edges.




⚠️ Installation Mistakes to Avoid



Never bolt E-Track to trailer skin alone. The thin aluminum or composite panels on trailer walls are not designed to carry securement forces. A ratchet strap under tension can rip an improperly mounted rail right off the wall—along with a chunk of your trailer. Always bolt through to a structural member: a logistic post, crossmember, or reinforcement plate.



Don't skip fasteners. Every 8–12 inches is the standard for a reason. Under load, the stress distributes across all the fasteners. Skip a few, and the remaining ones bear disproportionately more force.



Watch for corrosion between dissimilar metals. If you're mounting galvanized steel E-Track to an aluminum trailer, use a separator (rubber pad, bed liner material, or corrosion-resistant barrier) between the rail and the wall. Direct contact between galvanized steel and aluminum causes galvanic corrosion over time.



Don't cut corners with hardware. Use Grade 5 or Grade 8 bolts, not cheap hardware store bolts. The fasteners need to handle the same forces as the rail itself.

E-Track vs. Traditional Tie-Down Points: A Quick Comparison



Feature E-Track System Fixed D-Rings / Weld-On Points
Number of anchor points Dozens per rail Limited to installed locations
Adjustability Snap fittings anywhere along the rail Fixed position, cannot be moved
Installation difficulty Moderate DIY Welding required for welded points
Versatility Straps, beams, chocks, nets, shelving Straps only
Cost Higher upfront, lower long-term Lower upfront, limited flexibility
Best for Mixed or changing loads Consistent, repetitive loads



For most trailer owners who haul different types of cargo—especially those transporting vehicles, equipment, or mixed freight—E-Track is the clear winner. The flexibility alone justifies the investment.




Caring for Your E-Track System



A well-maintained E-Track system will last for years. Here's how to keep it in top shape:



  • Inspect regularly. Check for loose fasteners, cracked welds, or deformed slots. Tighten or replace as needed.
  • Clean the slots. Dirt and debris can prevent fittings from seating properly. Blow out or brush clean periodically.
  • Replace worn straps. E-Track straps are consumable. If the webbing shows fraying, cuts, or UV damage, replace the strap—don't risk it.
  • Lubricate fittings sparingly. A light spray of dry lubricant on the spring-loaded fittings keeps them snapping smoothly without attracting dirt.
  • Store accessories properly. Keep spare fittings and straps in a dry compartment to prevent corrosion and UV degradation.




Final Thoughts



An E-Track system transforms your trailer from a box with a few bolted-down rings into a fully adaptable cargo control platform. Whether you're hauling a single motorcycle on the weekend or managing a fleet of delivery trucks, the ability to create anchor points exactly where you need them—quickly and reliably—changes the way you work.



The installation is straightforward, the accessories are endless, and the safety margin is significant. If your trailer doesn't have E-Track yet, it's one of the highest-impact upgrades you can make.



Ready to get started? Check out Towmax's E Track Tie Down Rail Kit and UTV Wheel Chock Tie Down Kit to build out your cargo control system the right way.
